characteristic:

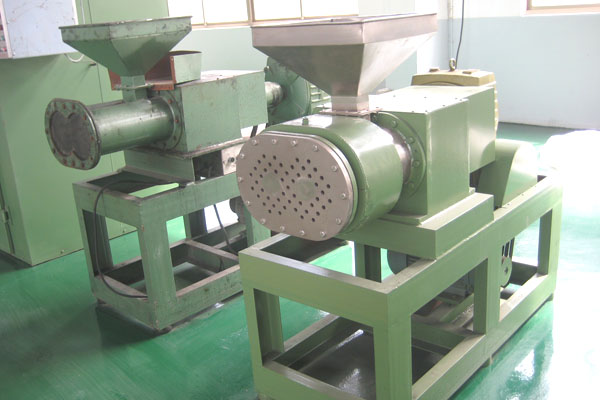

The SET series twin-screw extruder granulator is divided into front discharge type and side discharge type. The diameter of the front discharge type granulator is generally selected between 1.5-12mm, and the diameter of the side discharge type granulator is generally selected between 0.7-2.0mm. The particle shape is cylindrical, and the granulation rate is high; 95%.
Technical parameter table:
螺杆直径 | 电机功率kw | 转速rpm | 外形尺寸 L×D×H mm | 设备重量kg | |
SET-100 | 100 | 7.5 | 11~110 | 2000×500×1000 | 810 |
SET-140 | 140 | 15 | 11~110 | 1920×800×1430 | 810 |
SET-180 | 180 | 22 | 11~110 | 3000×870×880 | 810 |
